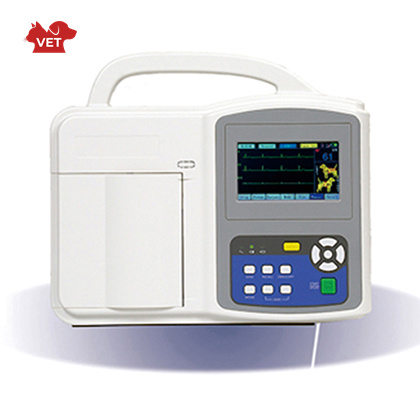

★Compact in size and ergonomic design,very easy to operate,portable.
★80mm,three channel format recording with interpretation;Recording format.
★1ch+V,3ch,3ch+V.Three working modes:Auto,Maunal and Arrythmia Analysis.
★High accuracy digital filter;Automatic baseline adjustment.
★7 leads simultaneously collection and display.
★480*272 graphic 3.5 inch color LCD displays detailed ECG information.
★100 cases of ECG can be stored and displayed.
★Adapt to 110-230V,50/60Hz power supply.
★Rechargeable Ni-MH battery supports continuous work over 3 hours.
★With Rs232 communication interface.
★PC ECG Management software is optional.
Care for various of animals
Technical Specification
Lead | Standard 7 leads | Voltage tolerance | </=±500mV |
Lead acquisition | 24bit/1000Hz(synchronously 7 leads) | Time constant | </=3.2s |
Work mode | Auto,Auto 2,Man,Analysis | Frequency response | 0.05-150Hz(-3db) |
Filter | ·AC Filter:50Hz/60Hz ·EMG Filter:35Hz/45Hz ·Anti-Drift Filter:0.15Hz(Adaptive) | Noise level | <15μVp-p |
Inter-channel interference | </=0.5mm | ||
Sensitivity | Auto,2.5,5,10,20 mm/mV | ||
CMMR | >/=100dB(with AC Filter) | Recording mode | 1ch+V,3ch,3ch+V |
Input circuit | Floating;Protection circuit against Defibrillator effect | Paper speed | 5,10,12.5,25,50mm/s(±3%) |
Paper | 80mmx20m roll paper | ||
Input impedance | >/=50MΩ | Communication | Rs232/USB port |
Input circuit current | </=0.05μA | Power supply | ·AC -110-230V,50/60Hz ·DC:Rechargeable Ni-MH battery |
Patient current leakage | <10μA | ||
Calibrating voltage | 1mV±2% | Dimension and Weight | 310mmx260mmx85mm,1.4kgs |
Standard Package
Main Unit | 1 unit | Thermal printing paper | 1 roller |
Veterinary patient cable with electrodes | 1 pc | PC software | 1 pc |
Paper axis | 1 pc | Power cord | 1 pc |
