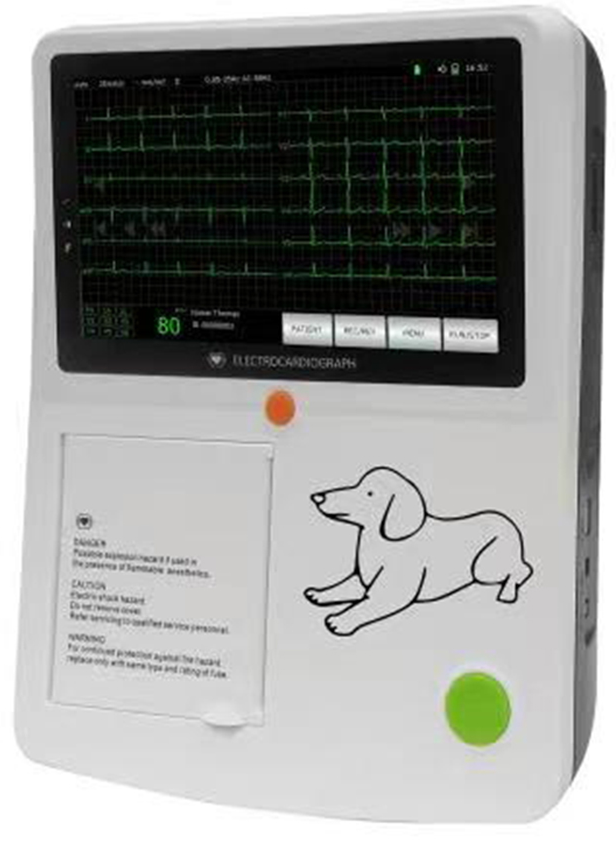

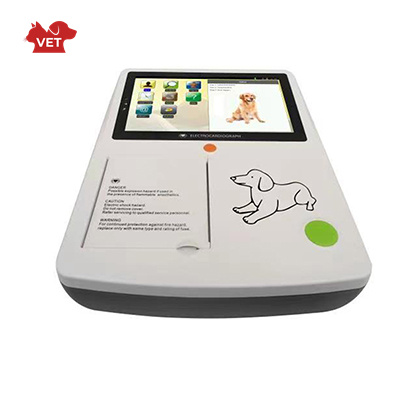

ECG Machine for animal
Functional Characteristics
• 7 /12 lead ECG synchronous sampling system
• Thermal printer with 80mm print paper, synchronization print.
• 7" color touch-screen, touch operation.
• Automatic measurement, calculation, analysis, waveform freezing.
• Support USB flash disk & SD memory.
• Data transmitting to PC via USB.
• Patient's information can be input.
• Historical data can be reviewed and printed.
• Built-in rechargeable Ii-ion battery, AC/DC power conversion.
• Sleep mode to save energy and extend TFT screen life.
• Support USB Keyboard/Mouse.
• Lead off & lack off paper detection function.
• 7 level printing thick can be chosen.
• Adapt to 110-230V, S0/60Hz AC power supply.
Product Features
Touch Mode Quick Input Convenient setting Unlimited Storage
Technical Index
CMRR | ≥100dB, with AC Filter | Calibrating voltage | 1mV士3% |
Input circuit | Floating. Protection against defibrillator effect | Voltage tolerance | ±500mV |
Input circuit current | ≤0.1µ A | Time Constant | > 3 2s |
Resolution | 12bit/1000Hz | Frequent response | 0.05Hz-150Hz |
Operation mode | Manual/Auto | Noise level | ≤15µVp-p |
Filter | AC,ECG Filter | Threshold | ≤20µ V |
Drift filter | Anti-Drift System | Paper speed | 12.5mm/s, 25.50mm/s (±3%) |
Input impedance | > 50MΩ | Sensitivity | 5，10，20mm/mV |
Patient current leakage | < 10µA | Recorder | High resolution thermal printer |
Rated voltage | 100V-230V 50Hz/60Hz | Battery | Li-Ion Battery(11.1V.2200mAh) |
Recording paper | Thermal recording paper | Dimension | 256mmx204mmx 66mm |
