※Technical Specification

■Principles

lmpedance method for RBC and PLT counting

Cyanide free reagent for hemoglobin test Flow Cytometry(FCM)+ Tri-angle laser scatter method for WBC 5-part differen-tial analysis and WBC counting

■Parameters

23 parameters:WBC,Lym%,Mon%,Neu%,Bas%,Eos%，Lym#,Mon#,Neu#,Eos#,Bas#,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-CV,RDW-SD,PLT,MPV PDW,PCT.

4 research parameters including LIC%,LIC#,ALY%,ALY#2histograms for RBC and PLT

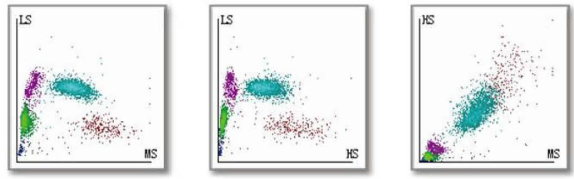

3DIFF scattergrams and 3 BASO scattergrams

■Reagent

Diluent,LYE-3 lyse,LYE-1 lyse, probe cleanser

■Performance

Parameter Linearity Range Precision Carryover

WBC 0-300x10⁹/L_2%(4-15x10⁹/L)_0.5%

RBC 0-8.5x10¹²/L_1.5%(3.5-6.0X10¹²/L)_0.5%

HGB 0-250g/L_1.5%(110-180g/L)_0.5%

PLT 0-3000x10⁹/L_4.0%(100-500x10⁹/L)_1.0%

■Sample Volume

Prediluted blood 15uL, Whole blood 20μL

■Throughput

60 samples per hour

■Display

10.4 inch TFT Touch Screen

■Multi-language

Chinese English available

Spanish,Portuguese,Russia, French under planning

■Date Storage Capacity

Up to 50,000 results including numeric and graphical

■Communication

LAN port supports HL7 protocol

■Interface

USB,LAN Support Bi-directional LIS

■Printout

External Laser printerl Inkjet printer,various printout formatsand user-defined formats

■Operating Environment

Temperature:10℃~30℃Humidity:20%~85%

■Air pressure

70 kPa~106 kPa

■Power requirement

100V-240V、50Hz/60Hz

■Dimension and Weight

Depth(360mm)*width(470m)*height(430mm)

■Weight

28kg

※Features

·Tri-angle Laser scatter +Flow cytometry technology

·WBC 5-part differentiation, 23 reportable parameters and 4 research parameters, 2 histograms, 3 DIFF scattergrams and 3 BASO scattergrams

·Double optical counting channel both for WBC and basophil measurement

·Whole blood mode, Capillary whole blood mode and Prediluted mode

·Powerful capability of flagging abnormal cells

·10.4 inch large TFT touch screen with user-friendly software

·Large storage capacity: up to 50,000 samples

·Throughput: 60 samples per hour

·Low smple volume 20μL

·Compact in size

·High precision

·Good repeatability

Real double optical channel test,both forDiff and Baso.Baso channel with optical counting,more precise.

All key components are imported ,high quality and

longer life .Syringe main-tenance free .
