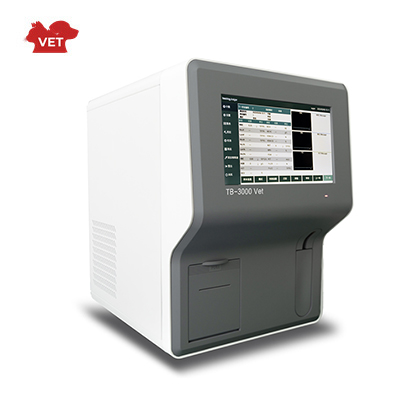

TB-3000Vet
Veterinary 3-Part Differential Automatic Hematology Analyzer
nDual-Channel Measurement,60VA
n Whole Blood
n Only 6 μL Required per Test
Determine the presence of inflammation or infection and analyze the underlying cause of the inflammation:

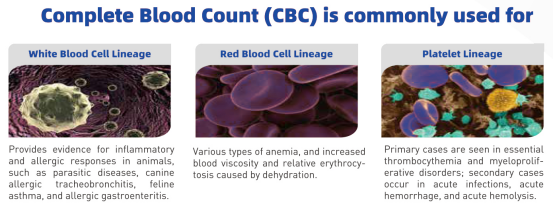

Complete blood count (CBC) is one of the most common and fundamental examinations in the clinical diagnosis of diseases in dogs and cats.It not only reflects the physiological and pathological changes of the hematological system itself, but also indicates pathological changes in various organs of the body.
Test types:
Dog, Cat, Pig, Cattle, Sheep, Horse, Monkey, Mouse, Goat, Rabbit, Pot-bellied Pig, Camel Water Buffalo, Chicken,Two custom animals
Ø Rapid measurement
Adopts a dual-channel measurement method.
Ø zero residual
No residual diluent/hemolytic agent remains
Ø Humanized
6uL of micro blood sample is applied:
the sampling process is painless.
Ø simple operation
Extra-large LCD touchscreen with high-definitioncolor display,no external computer required; built-in printer for fast and accurate result reporting.
Ø Optimized fluidics withextremely low failure rate.
Ø Floating reference markers enablemore accurate classification.
Technical Parameters:
Test ltems | White Blood Cell Count | WBC | Mean Corpuscular Hemoglobin Concentration | MCHC | Parameters | Performs three-part white bloodcell differential, tests 21 parameters and generates 3 histograms, with abnormality alert functionality |
Neutrophil Count | NEU# | Red Cell Distribution Width-coefficient of Variation | RDW-CV | |||
Intermediate Cell Count | MXD# | Red Cell Distribution Width-Standard Deviation | RDW-SD | |||
Lymphocyte Count | LYM# | Hematocrit | HCT | Test Mode | Whole Blood Mode | |
Neutrophil Percentage | NEU% | Platelet Count | PLT | QC | L-J Quality Control, X-B Quality Control | |
Intermediate Cell Percentage | MXD% | Mean Platelet Volume | MPV | Power | 40VA | |
Lymphocyte Percentage | LYM% | Platelet Distribution Width | PDW | Weight | 25kg | |
Red Blood Cell Count | RBC | Plateletcrit | PCT | Dimensions | 628mm x425mm x446mm(LxWxH) | |
Hemoglobin | HGB | Large Platelet Ratio | P-LCR | |||
Mean Corpuscular Volume | MCV | Large Platelet Count | P-LCC | |||
Mean Corpuscular Hemoglobin | MCH |
