■Latest innovation—Tri-angle laser scattering and flow cytometry
l
Blood cells are surrounded with sheath fluid (diluent),they pass through the center of the flow cell one by one at high speed.
l Blood cells are exposed to a laser beam.The intensity of scatter light reflects the blood cell size and intracellular density.
The tri-angle laser scattering contributes to more accurate counting.
l Diff lyse is added to differentiate 4 kinds of WBC(Lym,Mon,Neu and Eos),LH Lyse is used to differentiate Bas and count WBC.
Besides,there is a dedicated channel for Bas differentiation.
■Unique Desigh—Smart counting mode
Analysis mode:①Whole blood ②Pre-diluted ③Smart counting
Smart counting with better repeatability for low WBC/PLT value samples.
Application scenario:
Neonatal pups,sick dogs and cats; Such as viral infections,feline panleukopenia,feline abdominal transmission.
■19 species available—Smart counting mode
l Every species with specific reference range.
l Gather the blood sample of 19 species for clinical test;The mean value and coefficient of variation are within
the range,and make sure that we can get accurate results and clear histogram.
■Strong software—User-friendly
Ø Powerful data management
l 28+8 reportable parameters for better diagnosis
l Flag information offered for abnormal Indicator
l VIMS software provided for data transmission

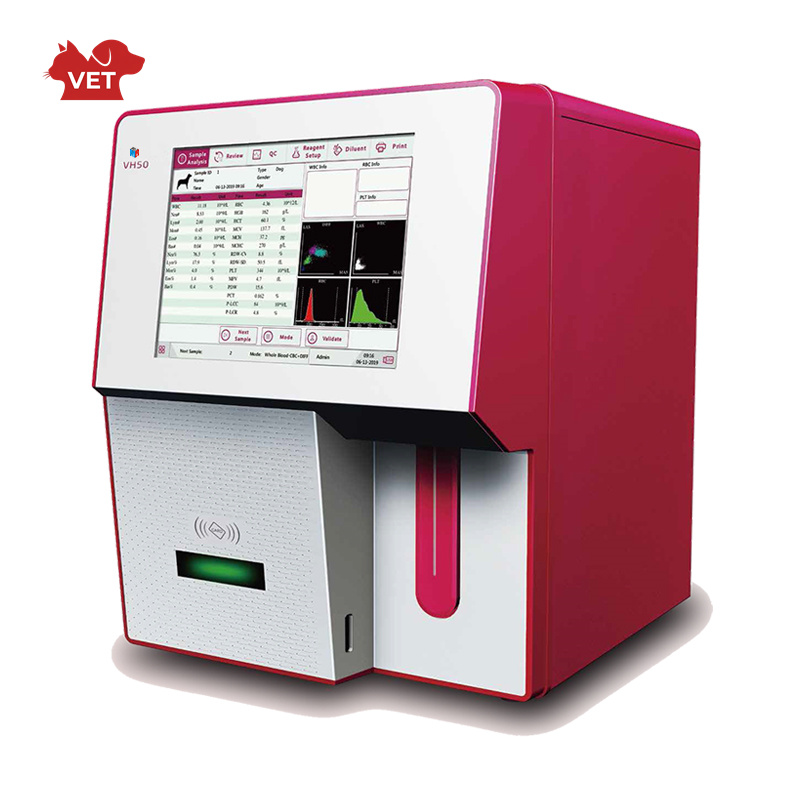

■Compact Yet Powerful
Ø Reliable hardware,accurate results
l Long life semi-conductor laser to differentiate WBC into 5 parts
l Ceramic syringe to assure precise reagent or sample aspiration
l Famous liquid parts (SMC valves and KNF pump) and simplified liquid system
Ø Built-in operating system
l No extra PC reqired
l 10.4-inch touch screen
Ø Convenient printout solution
l Built-in thermal printer
l Support external printer via USB
l Editable print template
Ø Easy reagent management
l 3 reagents(2 Lyse,1 Diluent) only, cost-effective
l Lyses placed inside for space saving
Ø Automatic access to information
l RFID card reader: access to reagent information
l Built-in barcode scanner(optional)
Throughput | 60 samples/hour | Net weight | 28kg |
Principle | Flow Cytometry by Laser for WBC Cyanide-free method for HGB Impedance for RBC,PLT | Sample volume | Whole bloodmode:20μL Capillary mode:20μL Prediluted mode:20μL |
Species | 19 species,and support custom species;Cat,Dog,Rabbit,Sheep,Goat,Cattle, Horse,Rat,Mouse,Llama,Deer,Musk deer, Tiger,Monkey,Dolphin,Pig,Camel,Ferret | Work environment | 100-240AC,50/60Hz,160VA 10-40℃，10%-90% 70kpa-106.0kpa |
Parameters | 28 parameters:WBC,LYM%,MON%,NEU%,BAS%,EOS%,LYM#,MON#,NEU#,EOS#,BAS#, RBC,HGB,HCT,MCV,MCH,MCHC,RDW-CV,RDW-SD,PLT,MPV,PDW-CV,PDW-SD,PCT,P-LCR, P-LCC,NLR,PLR | ||
8 research parameters | LIC%,LIC#,ALY%,ALY#,NRBC%,NRBC#,PLT Clumps%,PLT Clumps# 4 scattergrams for WBC differential 2 histograms for RBC and PLT | ||
Calibration | Manual calibration,auto calibration | Quality control | 3-level QC L-J QC,X-B QC |
Reagent | DIFF Lyse, LH lyse Diluent,Probe cleanser | Data transmission | With VIMS software Support Bi-directional LIS |
Interface | 4 USB ports,1 Network port | Dimension | 430(D)*350(W)*430(H)mm |
Input and output | 10.4 inch touch screen Reagent room for lyse Internal printer | Storage | 60,000 results with scattergrams & histograms |
Language | English,Spanish,Italian,French,Russian,Portufuese,Ukrainian,etc. | ||
Parameters | Precision(CV) | Linearity range |
WBC | ≤2.0%(4.0-15.0×109)/L | (0-500.0×109)/L |
RBC | ≤2.0%(3.5-6.0×1012 )/L | (0-8.00×1012)/L |
HGB | ≤1.5%(110-180 )g/L | (0-250.0 )g/L |
MCV | ≤1.0%(70-120 )fL | - |
PLT | ≤4.0%(150-500×109 )/L | (0-5000×109 )/L |
