Species | Supporting cat, dog and rabbit ,cow, horse and sheep + 20 self-programmed animals |
Parameters | 23 parameters: WBC,Neu#, Lym#, Mon#,Eos#,Bas# ,Neu%, Lym%,Mon%,Eos%,Bas%, RBC,HGB,HCT,MCV,MCH,MCHC, RDW-SD,RDW-C, PLT,MPV,PDwW, PCT 3 histograms for wBc,RBC and PLT 4 scattergrams for 'wBC differentiation |
Principles | Flow Cytomeltry(FCM) +Tri-angle laser scalter+ chemical staining method for WBC differention, lmpedance method for RBC and PLT test,Cyanide free colorimetry for HGB test |
Reagent | Diliuent, Lyse-1,Lyse-2 |
Test mode | whole blood mode:20μL |
Throughput | Up to 60 tests per hour |
Repeatability | WBC:≤3.0%(4.00-15.00x109/L) RBC:≤2.0%(>3.50x1012/L) HGB:≤2.0%(110-180g/L) MCV:≤1.0%6(70.0-110.0fL) PLT: for dog≤6.0%(100-500x109/L) for cat≤10.0%(100-500x109/L) |
Linearity range | WBC:0.00-300x109/L RBC:0.00-14.50x1012/L |
Printout | lnternal printer |
Display | 10.4 inch Touch Screen |
Date Storage | Up to 50,000 records |
Interface | 4 USB ports,1LAN port |
Net weight | 27kg |
Dimension | 362mm*427mm"470mm |
Accutate with laser technology
·3-angle laser technology applied
·Independent baso channel delivers more accutate result
Less maintenance and strong animal study orientation

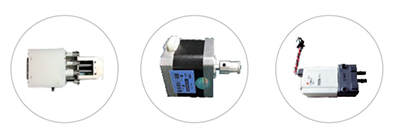

·High quality components
·one-key maintenance
·Smart and integrated designStrategic cooperation with leading acedemic veterinary institutions in China
·Software tailored-made for animals in particular
Friendly to vets
·Space saving:
Compact design with small footprint;Built-in lyse inside
·10.4" touch screen: Easy to operate
·RF card for one-touch reagents replacement
·Smart QC :Simply scan and automatically get all data
Affordable care
·Less reagent cost making more informative bloodworks affordable
·3 reagents only,lyse inside
●Parameters
23 parameters:
WBC,Neu#, Lym# , Mon#, Eos#,Bas#, Neu%,Lym%,
Mon%,Eos%,Bas%,RBC,HGB,HCT, MCV, MCH, MCHC,
RDW-SD,RDW-CV,PLT,MPV,PDW,PCT
3 histograms for WBC, RBC and PLT
4 scattergrams for WBC differentiation
●Throughput
up to 60 tests per hour
