【Features】
√Low perfusion index
√Provide Pl(perfusion index)
√Suitable all kinds of animals3.5 inch TFT color screen
√Multi parameters for collocation optional
■NIBP+SPO2+TEMP ■NIBP+TEMP ■SPO2+TEMP
■SPO2+ETCO2 ■SPO2+ETCO2+NIBP
√Support 100ID users
√Two measurement mode: spot、monitor
√NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude
-Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
√Data storage function:support data review ,data trend and chart .
■Monitor mode,support cintinuous recordfor 48 hours
■Spot mode,100 users lD,each user canstorage 200sets data
√Support audio and visual alarm,can set low and high limit values
√Lithium ion battery inside
√Optional Charging dock
Screen | 3.5” TFT | Resolution | 320*480 |
Indicator | Alarm light,Power light | Waveform | SPO2 and wavevalue |
Alarm | Sensor off, low power etc | Alarm type | Audio and visual |
Animal | Small or big | ||
NIBP
■Support big or small animals
■NIBP measurement range
Big Animal | Small Animal | |
SYS | 40-270mmHg | 40-270mmHg |
MEAN | 20-230mmHg | 20-230mmHg |
DIA | 10-210mmHg | 10-210mmHg |
■Static pressure range:0-300mmHg
■NIBP measurement accuracy:±3mmHg
■Over pressure protection
software:300mmHg hardware:320-330mmHg
CO2
√Measurement range:
ETCO2:0-150mmHg(0-19.7%)(0-20kpa)RR:3-150BPM
√Accuracy range:
ETCO2 Range | Accuracy |
0-40mmHg | +2mmHg |
41-70mmHg | ±5% of reading |
71-100mmHg | ±8% of reading |
101-150mmHg | ±10% of reading |
RR Accuracy:±1BPM
√Resolution: ETCO2:0.1mmHg RR:1BPM
√Setting compensation parameters
Pressure range: 450-850mmHg
Oxygen range:0-100%
Equilibrium gas: N2O,He
SPO2
■Measurement range: SpO2:0-100% PR: O-300bpm
■Accuracy range: SpO2: 70-100% PR:30-254bpm
■Accuracy
spo2: ±2(70%-100%) Motion:±3 PR: ±3bpm Motion:±5bpm
TEMP
■Measurement range:25-45℃ ■Resolution:0.1℃ ■Accuracy:0.1℃
√Power supply:Lithium ion battery
Operation time:8 hours for normal operation
√TEMP:operating:0-45℃ ; Satarage:-25℃-65℃
√Humidity: Operating:15% to 90% noncondensing
Storage:0% to 95% noncondensing
√Altitude:Up to 5000 meters
√Dimension: 146mm*67mm*30mm Weight 250g

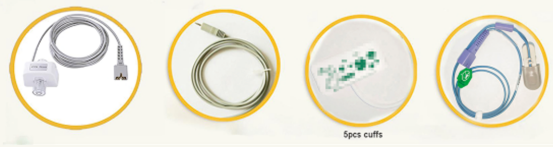

All Accessories
