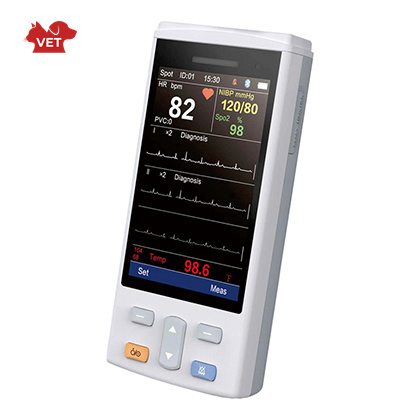

【Features】
√ECG:3/5 Leads,3 waves
√Accurate measurement in Low perfusion Index
√Provide the parameter of Pl( Perfusion lndex )
√Accurate measurement in all kind of extreme environment measurement such as Big animal and Small animal
√NIBP adopt SAWAA(Self-Adaptive-Wave-form-Amplitude -Adjust)algorithm and SAFD(-Self-Adaptive-Fast-Deflation)algorithm
√Easy operation by 4"' color TFT Up to 100 users lD switch
√Multiple vital signs measurement parameters for collocation optional
■3/5 Leads ECG,NIBP,Spo2,Temp ■NIBP,Spo2,Temp,Co2
√two measurements mode:Spot,Monitoring
√Data storage capabilities,support for historical data view and trend chart back to see
■ln monitoring mode,can continuously record 48 hours of measurement data
■ln spot mode,100 users lD, each user can store200sets data
√Support audio and visual alarm,support to set alarm upper and lower limit values
√Lithium ion battery power supply
【Performance Specifications】
Display | 4' 'color TFT | Resolution | 320*480 |
Indicator | Alarm indicator, Power indicator | Trace | 1plethysmogramwaveform,ECG wave |
Alarm | Probe off, low power | Modes | Visual and Audio |
Application | Big animal and Small animal | ||
【ECG】
Lead | 3or5 lead (R,L,F,N, C1 or RA, LA, LL,RL,V1) | |
Lead mode | l, ll, IlI, aVR, aVL, aVF, V1, CAL | |
Wave | 3 waves | |
Gain selection | 0.25V/mV,0.5V/mV, 1V/mV, 2V/mV | |
Heart Rate | Big animal | Small animal |
Range | 15~300 bpm | 15~350 bpm |
Accuracy | ±1% or ± 1bpm Bigger | |
Resolution | 1 bpm | |
Sensitivity | >200 uV(peak to peak) | |
Bandwidth | ||
Diagnositic | 0.05~100 Hz | |
Monitor | 0.5~40Hz | |
Surgery | 1~20 Hz | |
Stronger Filter | 5~20Hz | |
【NIBP】
■The wider NIBP measurement range
Big animal | Small animal | |
SYS | 40~270mmHg | 40~200mmHg |
MEAN | 20~230mmHg | 20~165mmHg |
DIA | 10~210mmHg | 10~150mmHg |
Pulse rate range:40~240bpm
■NIBP measurement accuracy:±3mmHg
■Pulse rate measurement accuracy:<=2%(>=100 BPM)or 2 beats/min (<100 BPM)
Biq animal | Small animal | |
Independent software protection pressure | 300mmHg | 300mmHg |
Independent hardware protection pressure | 320~330mmHg | 320~330mmHg |
【Oxygen Saturation(%Spo2)】
Measure range | Accuracy range | |
SpO2 | 0-100% | 70-100% |
PR | 0-254bpm | 30-254bpm |
Measurement accuracy | Sp02 | PR |
Big animal | ±2 bpm(70%-100%) | ±3 bpm |
Small animal | ±3 bpm not defined(<70%) | ±3 bpm |
On motion condition | ±3 bpm | ±5 bpm |
【Temperature】
■Measurement range: 25—45℃
■Resolution: 0.1℃ ■Accuracy: 0.1℃
√Power Type: Lithium ion battery
Operation time: 8 hours for normal operation
√Temperature: Operating: 0℃~45℃ Starage/ Transportation:-20℃~65℃
√Humidity:Operating: 15% to 90% noncondensing Storage:0% to 95% noncondensing
√Altitude: Operating Altitude: Up to 5000 meters
√SIZE: Dimension 146mm*67mm*30mm Weight 250g
