PKL PPC 1150H Auto Hematology Analyzer


Parameters

25 reportable parameters:WBC,Neu# , L.ym# ,Mon#, Eos#Bas#, Neu%,Llym%,Mon%,Eos%, Bas%,RBC,HGB,HCT,MCV, MCH,MCHC,RDW-SD,RDW-CV,PLT,MPV,PDW,PCT,P-LCR,P-LCC 6research parameters:ALY#,ALY%,LIC#,LIC%,NRBC#,NRBC% 3 histograms for WBC,RBC and PLT Three DlIFF scattergrams and one BASO scattergram for WBC differention

Principles

Flow Cytometry (FCM) +Tri-angle laser scatter + chemical staining method for WBC differention,lmpedance method for RBC and PLT test,Cyanide free colorimetry for HGB test

Test mode

whole blood, capillany whole blood and pre-diluted modes

Test volume

20μL

Throughput

Up to 60 tests per hour

Repeatability

WBC:≤2.5%(4.0-15.0×109/L      RBC:≤1.5%(3.5-6.0×1012/L)

HGB:≤1.5%(110-180g/L)         MCV:≤1%(70-120fL)

PLT:≤6.0%(100-149X109/L)      ≤4.0%(150-500×109/L)

Linearity range

WBC: 0.00-300.00×109/L        RBC: 0.00-8.50×1012/L

HGB:0-250g/L                 MCV:0-3000×109 /L

PLT;0.0-67.0%

Printout

lnternall printer,57mm thermal printer with various formats

Display

10.4 inches TFT touch screen

Storage

Up to 100,000 records

lnterface

4USB ports,1 LAN port

communication

LAN port supports HL7 protocol

Support bi-directionall LlS

Power requirement

100V-240V~,50/60Hz,≤200VA

Net weight

28kg

Dimension

362mm”427mm"470mm



Accutate with laser technology

·3-angle laser technology applied

·Independent baso channel delivers more accutate result








Less maintenance

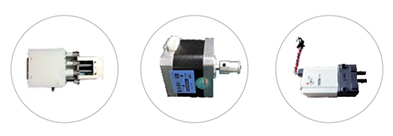

·Improted key parts and integrated design

·Strict international quality control system

·one-key error clear maintenance

·Experienced technical team for your smooth start







Friendly to end users

·Space saving:

Compact design with small footprint;Built-in lyse inside

·10.4" touch screen: Easy to operate

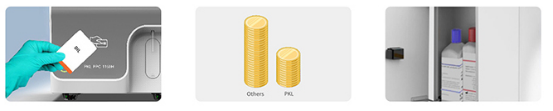

·RF card for one-touch reagents replacement

·Smart QC :Simply scan and automatically get all data



Affordable care

·Less reagent cost making more informative bloodworks affordable

·3 reagents only,lyse inside





Parameters

25 reportable parameters:

WBC,Neu#, Lym# , Mon#, Eos#,Bas#, Neu%,Lym%,

Mon%,Eos%,Bas%,RBC,HGB,HCT, MCV, MCH, MCHC,

RDW-SD,RDW-CV,PLT,MPV,PDW,PCT,P-LCR,P-LCC

6 research parameters:ALY#,ALY%,LIC#,LIC%,NRBC#,NRBC%

3 histograms for WBC, RBC and PLT

Three DIFF scattergrams and one BASO scattergram for WBC differention

Throughput

up to 60 tests per hour
